Helacon Wire Connectors

Helacon wire connectors 450V 24A Transparent wire connectors. Suitable for up to 2.5mm solid or stranded cable

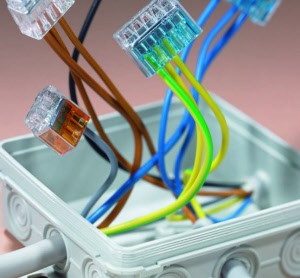

Helacon connectors are used for fast and reliable connection and distribution of cable and condustors.

Simply insert the cable completely into the connector. Double spring mechanism provides a secure installation and will support fitters especially in awkward situations like difficult to reach areas and overhead work

To change or correct a wire, simply hold and twist it left and right while pulling the connector

!

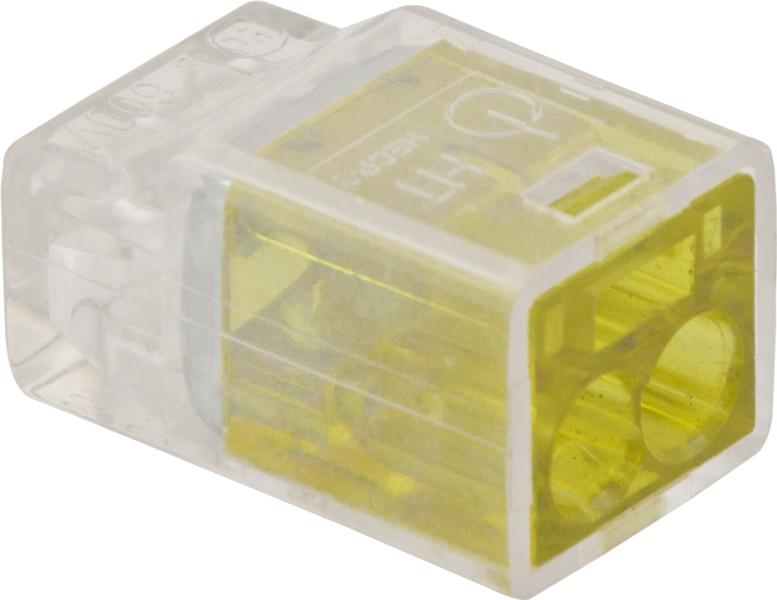

ETB102

Helacon Wire Connector 2 hole

  • 450V 24A
  • Provides a proper fixing that can be optically checked through the transparent housing
  • Voltage test entry on the front guarantees safety during application, installation and maintenance.
  • Yellow
  • QTY. 100

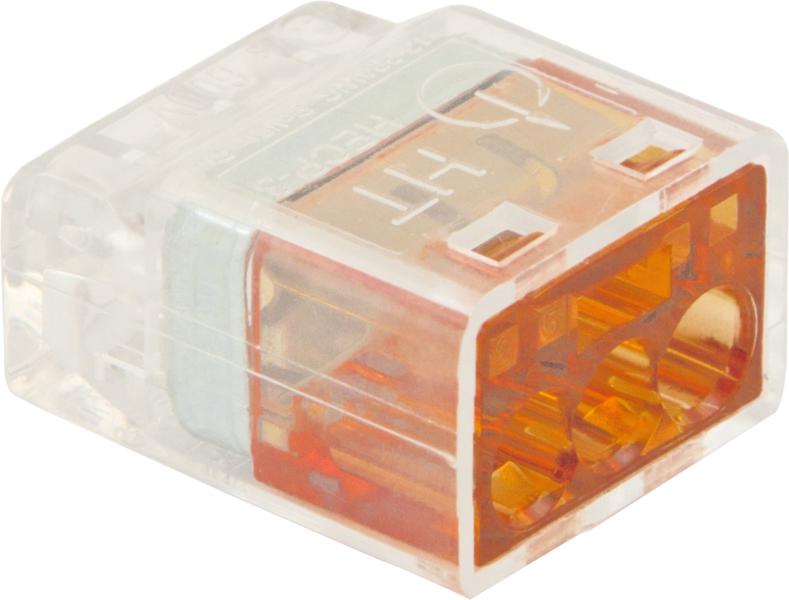

ETB103

Helacon Wire Connector 3 Hole

  • Helacon connector 450V / 24A
  • Provides a proper fixing that can be optically checked through the transparent housing
  • Voltage test entry on the front guarantees safety during application, installation and maintenance.
  • Orange
  • QTY. 100

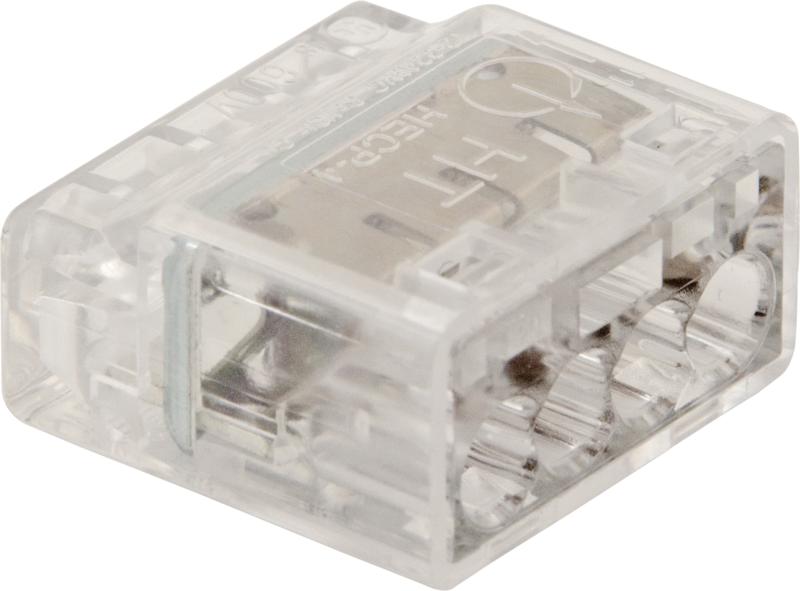

ETB104

Helacon Wire Connector 4 hole

  • Helacon connector 450V / 24A
  • Provides a proper fixing that can be optically checked through the transparent housing
  • Voltage test entry on the front guarantees safety during application, installation and maintenance.
  • Clear
  • QTY. 75

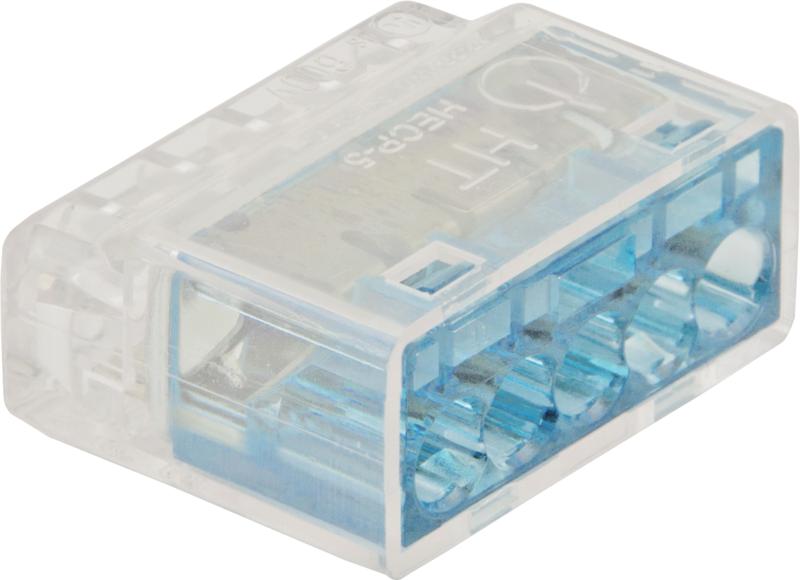

ETB105

Helacon Wire Connector 5 Hole

  • Helacon connector 450V / 24A
  • Provides a proper fixing that can be optically checked through the transparent housing
  • Voltage test entry on the front guarantees safety during application, installation and maintenance.
  • Light Blue
  • QTY. 50

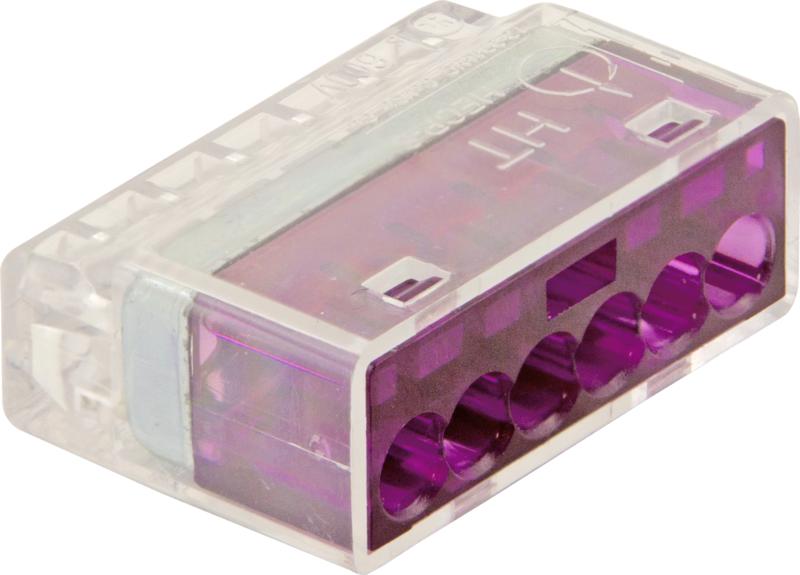

ETB106

Helacon Wire Connector 6 Hole

  • Helacon connector 450V / 24A
  • Provides a proper fixing that can be optically checked through the transparent housing
  • Voltage test entry on the front guarantees safety during application, installation and maintenance.
  • Purple
  • QTY. 50

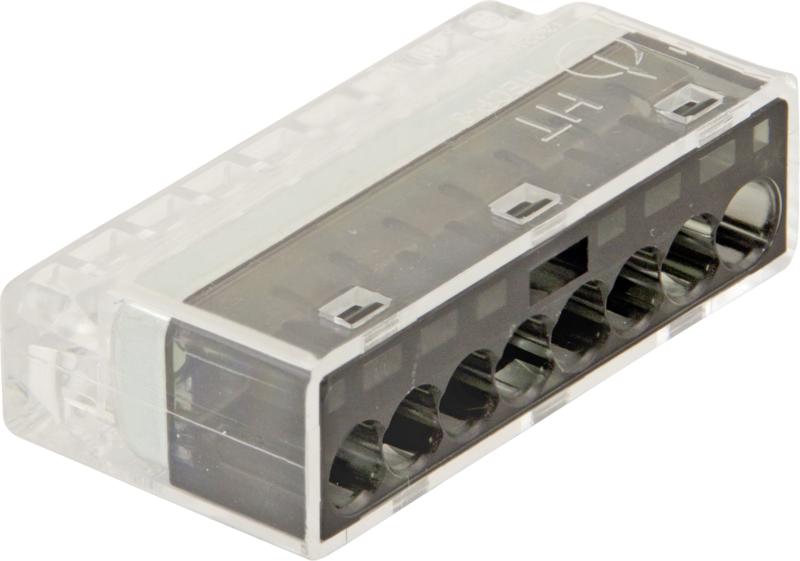

ETB108

Helacon Wire Connector 8 Hole

  • Helacon connector 450V / 24A
  • Provides a proper fixing that can be optically checked through the transparent housing
  • Voltage test entry on the front guarantees safety during application, installation and maintenance.
  • Black
  • QTY. 40
